RAPTOR XR FOR SMART CONTROLLER

AED 998
VAT Excl.
In stock
SKU
SKU-2291
Concurrent dual band 2.4 & 5GHz Long range extension without external boosters Complete solution Controller NOT included






Designed for DJI Smart Controller

The DJI Smart Controller is designed to maximize your outdoor flying experience with the Mavic 2 or other aircraft equipped with OcuSync 2.0.[1] A 5.5-inch built-in screen displays clear, bright images, even under challenging conditions. Intuitive controls and pre-installed features like SkyTalk and the DJI GO 4 App , DJI Fly App get you up in the air quicker, clearer, and more conveniently than ever before.
4Hawks antenna for DJI Smart Controller is highly advanced, operating in both 2.4GHz as well as 5GHz frequencies The concept behind the look of the antenna was to make it look like it was a part of the drone by default. Entire construction is 100% UV protected to assure longevity of the equipment. Additionally, part of the construction is made of aluminum to make the whole construction as light as possible. Mounting is made of stainless steel for rock solid stability. The entire set is lightweight and uniform (without any loose equipment pieces). Changing the direction of the antenna doesn't cause any difficulties, as the system was designed in a way that allows quick position change with just a single “click”. This way you can be sure that you do not lose the connection with your drone.


Compatible with the Mavic 2 series, Mavic Air 2S, Mavic Air 2, Mini 2, Phantom 4 Pro v2.0, Matrice series (300)


Extender Flight Range

Extender Flight Range


Noise removal from other devices

Noise removal from other devices


Improved video signal

Improved video signal


Adjustable signal direction

Adjustable signal direction


High quality, lightweight design

High quality, lightweight design


Complete solution

Complete solution





Specification

electrical & mechanical parameters of Raptor renge extender.


Electrical parameters



Frequencies
Port 1:   2.40 - 2.50 GHz & 5.00 - 5.80 GHz
Port 2:   2.40 - 2.50 GHz & 5.00 - 5.80 GHz


Gain
Port 1:   11 dBi  (+/- 1 dBi) & 14 dBi  (+/- 1 dBi)
Port 2:   11 dBi  (+/- 1 dBi) & 14 dBi  (+/- 1 dBi)


VSWR
Port 1:   < 1.50  (max. < 2.00)
Port 2:   < 1.50  (max. < 2.00)


Beamwidth
Port 1:   70°/40° & 40°/25°
Port 2:   70°/40° & 40°/25°


Polarization
Port 1:   Vertical
Port 2:   Vertical


Impedance
Port 1:   50 Ω
Port 2:   50 Ω


Mechanical parameters



Material
Antenna:   Samsung ABS, polyurethane, aluminum, Stainless steel, Nylon, PTFE PCB
Mounting:   Stainless steel + paint


Weight
~ 520g (450g Antenna + 70g Mounting)


Dimensions
29.2 x 18.2 x 2.1 cm
11.50 x 7.16 x 0.83 inch


Connection
Port 1:   RP-SMA female
Port 2:   RP-SMA female


Tilt adjustment
3 tilt positions, OnClick system




Plots

VSWR, Separation between connectors & characteristic patter of Raptor antennas

Raptor SR for Spark 2.4 GHz Port 1 & Port 2, Radiation Pattern.png


Raptor SR for Spark 2.4 GHz Port 1 & Port 2, Radiation Pattern Azimuth.png

Raptor SR for Spark 5.8 GHz Port 1 & Port 2, Radiation Pattern Azimuth.png

Raptor SR for Spark Dual Band Port 1, VSWR.png

Raptor SR for Spark Dual Band Port 1, Smith Chart.png

Raptor SR for Spark Dual Band Port2-Port1, Port Isolation.png

Raptor SR for Spark 2.4 GHz Port 1 & Port 2, Radiation Pattern Elevation.png

Raptor SR for Spark 5.8 GHz Port 1 & Port 2, Radiation Pattern Elevation.png

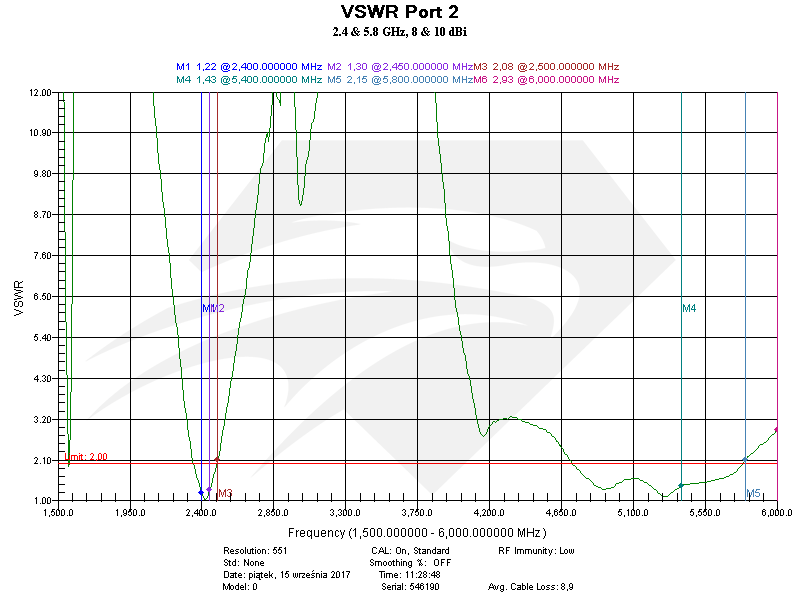

Raptor SR for Spark Dual Band Port 2, VSWR.png

Raptor SR for Spark Dual Band Port 2, Smith Chart.png
