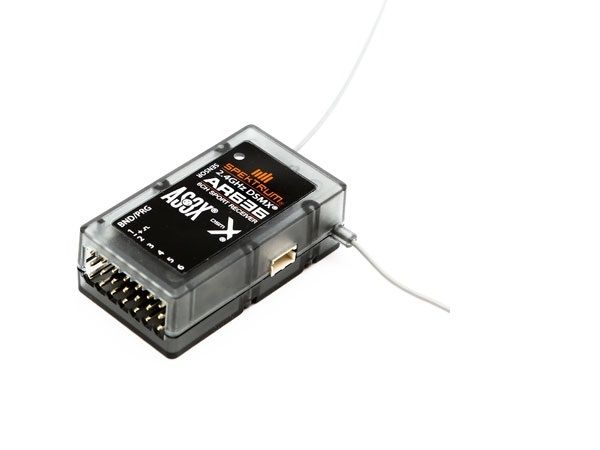

AR636 6 CHANNEL AS3X SPORT RECEIVER SPMAR636
KEY FEATURES
- Perfect for enthusiasts interested in park flyers up to giant scale aircraft that want to take advantage of AS3X technology & stabilization
- AS3X technology- 3 axis stabilization
- 3 Gyro modes- allows customization of the gyro performance and feel of the aircraft
- Programmable from mobile devices (iOS and Android) as well as PC's--easy setup at home or at the field
- Compact design
- Lightweight
- Standard servo connectors
- 1-Year Limited Warranty
- Compatible with Gas/Nitro applications
- Programmable from most mobile devices (iOS and Android user check for updates) as well as PCs—easy setup at home or at the field
PRODUCT SPECIFICATIONS
- Type:
- AR636 AS3X sport receiver
- # of Channels:
- 6
- Modulation: DSM2/DSMX
- Band: 2.4GHz
- Length: 1.70 in (42mm)
- Width: 0.90 in (23.5mm)
- Height: 0.60 in (14mm)
- Weight: 0.36 oz (10.2 g)
- Voltage Range: 3.5-9.6V
- Antenna Length: 200mm
A new generation of Spektrum™ AS3X®(Artificial Stabilization – 3-aXis) receivers is about to make it easier than ever for fixed wing pilots to transform their flying experience with this amazing technology. Like their predecessors, they combine AS3X technology with a DSMX® receiver in a single unit. What sets them apart is programming software that makes setup and adjustment of their AS3X settings much easier.
The software’s easy-to-understand, graphical user interface will allow pilots to:
- Select which AS3X mode to fly with: Off, Conventional Rate and Heading Hold
- Activate flaperon/dual aileron, delta/elevon, V-tail or dual elevator mixing
- Take advantage of servo setup options like balancing, travel adjust, absolute limits, reversing and more
- Map output and gain settings for individual channels
- Programming made easy via PC or iOS/Android mobile devices
- Uses AS3X Programming Cable-SPMA3065 or Audio-Interface AS3X Receiver Programming Cable-SPMA3081 (sold separately) for programming
- Convenient Bluetooth Module available for wireless connection between AS3X Programming app and AS3X Receiver (SPMBT1000)
