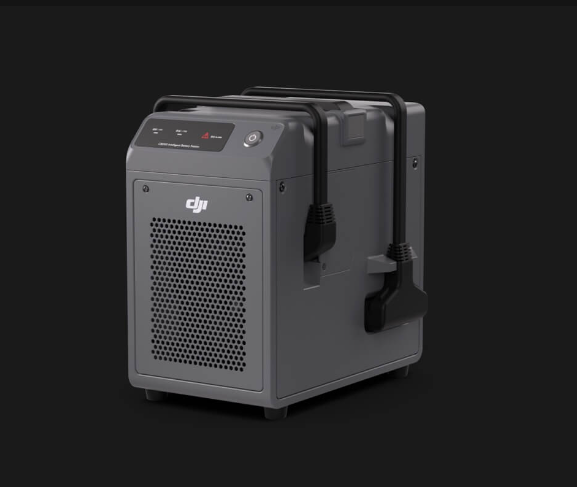

DJI C8000 Intelligent Battery Station
The DJI C8000 Intelligent Battery Station supports concurrent charging for dual batteries and fast charging for a single battery. The charging voltage is adaptive to standard generators with a max charging power of up to 7200 W.
The C8000 intelligent Battery Station can connect with up to two batteries. While charging, the battery station monitors the status of the batteries and can automatically adjust the charging current if required. The battery station continues to charge even if the ventilation holes are blocked.
Users can check the battery charging status LEDs and the warning indicator on the operation panel of the battery station to confirm if there are any errors.
The battery station can be connected to a remote controller using a USB-C cable and users can launch the app compatible with the aircraft to check more detailed information regarding any errors.
Additionally, the battery station has the following functions:
- Overcurrent Protection
- Overcharging Protection
- Over-voltage protection
- Over-heating protection, and
- Status display
Specifications
| Model | CHX101-7000 |
| Input | 90-264 V AC |
| Output | 42-59.92 V DC |
| Max Output Power | 7200 W (Dual input)3600 W (Single input) |
| Output Channel Quantity | 2 |
| Protection Feature | The feature is designed to respond to issues including overheating, overvoltage, undervoltage, short circuits, fan stalls, etc. |
| Operating Temperature | -20° to 45° C |
| Charging Security | Connector protection feature available |
