DX18 18 CHANNEL SYSTEM GENERATION 2 MD2

AED 3,647
VAT Excl.
In stock
SKU
SKU-1786

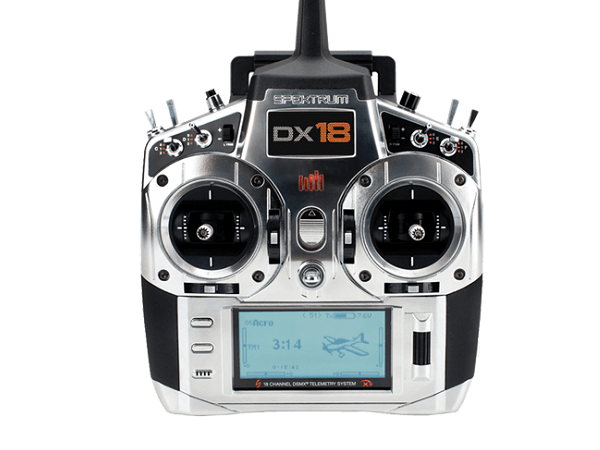

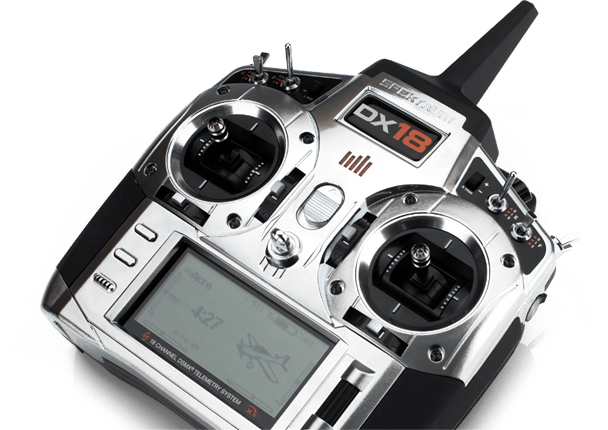

DX18 18 Channel System Generation 2 Md2

POWERFUL FEATURES FOR THE EXPERT PILOT.The Spektrum™ AirWare™ software that comes in the DX18 transmitter offers all the programming features an expert pilot could want. And the intuitive SimpleScroll™ interface makes navigating menus and changing settings as simple as "roll and click." It's almost like using a mouse.Many Spektrum AirWare features are innovations you won't find anywhere else, innovations that make flying safer and programming easier.

PROGRAMMABLE VOICE ALERTS

With voice alerts, you can keep tabs on important functions without ever taking your eyes off what you’re flying. They can be programmed to call out what flight mode you’ve chosen or report telemetry information on demand. If an alarm goes off, you won’t have to look at the transmitter display to see what’s happening. The transmitter will tell you.

PRO-CLASS PROGRAMMING FOR SAILPLANES

In addition to extensive airplane and heli programming, the DX18 transmitter has the most impressive sailplane programming features you'll find in any handheld transmitter. Ten available flight modes, 5 wing types, 3 tail types, 2 motor types, flap delay with elevator compensation-it has it all. You even have the ability to adjust individual servo characteristics (end points, travel, center, etc.) for all 18 channels.

BUILT-IN SEQUENCER

Program a sequence of switch-activated events with time delays between each event. For instance, with a flip of the gear switch you could have an auxiliary channel open landing gear doors, then have the retract channel lower the landing gear, followed by the auxiliary channel closing the gear doors after the gear is extended.

BUILT-IN SERVO BALANCER

No more will you need a complicated network of little boxes littering your fuselage if you want to balance servos. You can precisely balance the output of CCPM swash servos or multiple servos on a single control surface using a 7-point curve mix.

WIRELESS TRAINER LINK

The wireless trainer link gives instructors the option to wirelessly ''buddy box'' with another DSM2®/DSMX® transmitter. Once bound to another transmitter, ModelMatch™ technology will allow the DX18 to re-link without having to go through the bind process again.

250 MODEL MEMORY

The enormous capacity of the DX18's on-board memory means you will rarely, if ever, need to juggle models between transmitter memory and your SD card. The model memory menu is easier to navigate too. Only memory slots with model settings saved to them will appear. You won't have to scroll through empty slots or move models around if one is deleted.

X-PLUS™ CHANNEL EXPANSION

Both the DX18 transmitter and its AR9020 receiver are X-Plus capable, meaning you can add up to eight extra switch channels with an X-Plus channel expansion module. You just plug the module into the AR9020 and bind it. It's just what anyone who flies complex scale models or high-performance sailplanes needs.

STAY UP TO DATE

Register your DX18 transmitter and receive alerts whenever a new AirWare version is available.

MAX OUT YOUR FUNCTIONS. Both the DX18 transmitter and its receiver are X-Plus capable, meaning you can add up to eight extra channels with an X-Plus channel expansion module. just plug the module into the receiver, bind it and then assign the extra 8 channels to any function desired. It's just what anyone who flies complex scale models or high-performance sailplanes needs.



FLY SMARTER WITH BUILT-IN TELEMETRY.

Built-in telemetry gives you real-time information on things like your model's battery voltage, signal quality, engine or motor temperature, airspeed, altitude and more. You can have the DX18 recite this information on demand using the programmable voice alerts. You also have the option of logging telemetry data to the transmitter’s SD card for review after the flight.
A Spektrum TM1000 or TM1100 Air Telemetry Module (both sold separately) and a telemetry-capable receiver are required. You will also find a wide array of Spektrum telemetry sensors for tracking just about any vital model function you can think of, and new ones are being added all the time.

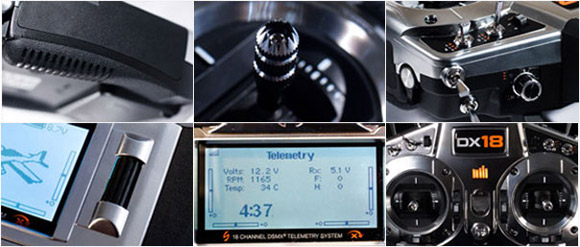

SUPERIOR ERGONOMICS. MADE TO FIT THE WAY YOU FLY.

The weight distribution and ergonomics of the DX18 have been optimized to fit the way you fly. The result is a sense of balance and comfort that perfectly complements the speed and precision of DSMX technology.

Notable features include:
  • Comfortable, no-slip rubber grips
  • Adjustable stick length and tension
  • Smooth, quad-bearing gimbals
  • User-adjustable mode configurations (1, 2, 3 or 4)
  • User-assigned switch functions
  • Easy-to-read backlit screen
  • Intuitive SimpleScroll programming interface

KEY FEATURES

  • Dual antenna diversity
  • Virtually unlimited model memory-transmitter stores up to 250 models and only populates the model list with models the user has configured
  • Programmable and customizable voice alerts
  • 18 fully-proportional channels
  • Wireless trainer link
  • Built-in telemetry with vibe or voice alerts
  • Extensive airplane, helicopter and sailplane programming
  • Throttle start or switch start timer
  • Region settings for global compliance
  • 16 programmable mixes
  • 0.5% mix rate increments
  • Origin mixing
  • Flap delay and elevator compensation
  • 11 airplane wing types
  • 6 airplane tail types
  • 2 canard options (1- and 2-servo) with elevon wing type
  • 5 airplane and heli flight modes
  • Dual rates and expo
  • Active gyro trim
  • 7-point heli throttle curve
  • 7-point heli pitch curve
  • 7-point heli tail curve
  • 6 swashplate types
  • Swashplate timing
  • 5 sailplane wing types
  • 3 sailplane tail types
  • 10 sailplane flight modes
  • 2600mAh 2S LiPo transmitter battery
  • Global charging system
  • X-Plus™ technology expandability up to 18 channels
  • 11ms frame rate
  • Large LCD screen
  • 5 menu languages: EN, DE, FR, IT and SP
  • 2048 resolution on the first 10 channels
  • Language selectable
  • Includes AR9020 receiver
  • EN328 compatible

PRODUCT SPECIFICATIONS

# of Channels:                                 18Modulation:                                      DSM2®/DSMX®Band:                                               2.4GHzReceiver:                                          AR9020Programming Features:                   Airplane, Helicopter, and SailplaneModel Memory:                                250Modes:                                             Selectable 1, 2, 3, or 4Transmitter (Tx) Battery Type:         2600mAh LiPoCharger:                                          Intl and Domestic Air Transmitter AC AdapterExperience Level:                            Advanced

OVERVIEW

Powerful Features for the Expert Pilot
The Spektrum™ AirWare™ software that comes in the DX18 offers all the programming features an expert pilot could want. And the intuitive SimpleScroll™ interface makes navigating menus and changing settings as simple as "roll and click." It's almost like using a mouse.

Many Spektrum AirWare features are innovations you won't find anywhere else; innovations that make flying safer and programming easier.

Programmable Voice Alerts
With voice alerts, you can keep tabs on important functions without ever taking your eyes off what you’re flying. They can be programmed to call out what flight mode you’ve chosen or report telemetry information on demand. If an alarm goes off, you won’t have to look at the transmitter display to see what’s happening. The transmitter will tell you.

Pro-Class Programming for Sailplanes
In addition to extensive airplane and heli programming, the DX18 has the most impressive sailplane programming features you'll find in any handheld transmitter. Ten available flight modes, 5 wing types, 3 tail types, 2 motor types, flap delay with elevator compensation-it has it all. You even have the ability to adjust individual servo characteristics (end points, travel, center, etc.) for all 18 channels.

Built-In Sequencer
Program a sequence of switch-activated events with time delays between each event. For instance, with a flip of the gear switch you could have an auxiliary channel open landing gear doors, then have the retract channel lower the landing gear, followed by the auxiliary channel closing the gear doors after the gear is extended.

Built-In Servo Balancer
No more will you need a complicated network of little boxes littering your fuselage if you want to balance servos. You can precisely balance the output of swashplate servos or multiple servos on a single control surface with the transmitter using a 7-point curve mix.

Wireless Trainer Link
The wireless trainer link gives instructors the option to wirelessly "buddy box" with another DSM2®†/DSMX® transmitter. Once bound to another transmitter, ModelMatch™ technology will allow the DX18 to re-link without having to go through the bind process again.

250-Model Memory
The enormous capacity of the DX18's on-board memory means you will rarely, if ever, need to juggle models between transmitter memory and your SD card. The model memory menu is easier to navigate too. Only memory slots with model settings saved to them will appear. You won't have to scroll through empty slots or move models around if one is deleted.

Because the DX18 Gen 2 uses the same software platform as the DX6 Gen 2, DX7 Gen 2 and DX9, you can share model setups with owners of those transmitters as well.

Stay up to date
Register your DX18 transmitter and receive alerts whenever a new AirWare version is available.

Programming Features
The DX18 has all the programming functions you need to fly everything from tiny collective pitch helis to competition sailplanes and giant-scale jets.

Airplane
• 11 Wing Types: Single Aileron, Dual Aileron, Flaperon, Single Aileron + Single Flap, Single Aileron + Dual Flap, Dual Aileron + Single Flap, Dual Aileron + Dual Flap, Elevon, Elevon B, Quad Aileron, Six Aileron
• 2 Canard Options (1- and 2-Servo) with Elevon Wing Types
• 6 Tail Types: Normal, V-Tail A, V-Tail B, Dual Elevator, Dual Rudder, Dual Rudder + Dual Elevator
• Flap Delay and Elevator Compensation
• 5 Flight Modes
• Dual Rates and Expo
• 0.5% Mix Rate Increments
• 16 Programmable Mixes

Helicopter
• Active Gyro and Governor Trim
• 7-Point Throttle Curve
• 7-Point Pitch Curve
• 7-Point Tail Curve
• 6 Swash Plate Types: 3-Servo 120º, 3-Servo 135º, 3-Servo 140º, 3-Servo 90º, 4-Servo 90º, 2-Servo 180º
• Swash Plate Timing
• 5 Flight Modes
• Dual Rates and Expo
• 0.5% Mix Rate Increments
• 16 Programmable Mixes

Sailplane
• 5 Wing Types: Single Aileron, Dual Aileron, Dual Aileron + Single Flap, Dual Aileron + Dual Flap, Quad Aileron + Dual Flap
• 3 Tail Types: Normal, V-Tail A, V-Tail B
• Motor Throttle Switch Assignment
• Aileron and V-tail Differential
• Camber System
• Camber Preset
• Flap Delay and Elevator Compensation
• 10 Flight Modes
• Dual Rates and Expo
• 0.5% Mix Rate Increments
• 16 Programmable Mixes

Max Out Your Functions

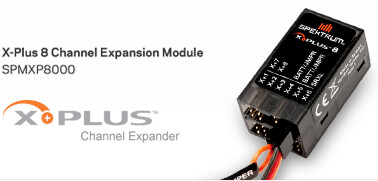

Both the DX18 and the AR9020 receiver it comes with have X-Plus™ channel expansion capabilities. This means you can add up to eight extra channels with an X-Plus channel expansion module (SPMXP8000 – sold separately). Just plug the module into the receiver, bind it and then assign the extra channels to any function you want.

Fly Smarter with Built-In Telemetry
Built-in telemetry gives you real-time information on things like your model's battery voltage, signal quality, engine or motor temperature, airspeed, altitude and more. You can have the DX18 recite this information on demand using the programmable voice alerts. You also have the option of logging telemetry data to the transmitter’s SD card for review after the flight.

A Spektrum TM1000 telemetry module and telemetry sensors (all sold separately) are required. You will find there are Spektrum telemetry sensors for tracking just about any model function you can think of, and new ones are being added all the time.

Superior Ergonomics. Made to Fit the Way You Fly.
The weight distribution and ergonomics of the DX18 have been optimized to fit the way you fly. The result is a sense of balance and comfort that perfectly complements the speed and precision of DSMX technology.

• Comfortable, no-slip rubber grips
• Adjustable stick length and tension
• Smooth, quad-bearing gimbals
• User-adjustable mode configurations (1, 2, 3 or 4)
• User-assigned switch functions
• Easy-to-read backlit screen
• Intuitive SimpleScroll programming interface
