Freewing F-4D Phantom II 90mm EDF Jet - PNP 90-9B inrunner FJ31213P

AED 2,093
VAT Excl.
In stock
SKU
SKU-2186
This is the High Performance version which includes a powerful 3672-1900kV inrunner motor with new 9-blade fan.

F-4D Phantom II High Performance 90mm EDF Jet from Freewing - PNP - FJ31213P

Freewing F4-D Phantom II 90mm EDF Jet - Winner for Best Scale Jet at 2018 AEF.

Version Info: This is the High Performance version which includes a powerful 3672-1900kV inrunner motor with new 9-blade fan.

Aviation enthusiasts have long loved the F-4 Phantom, and Freewing and Motion RC are extremely proud to introduce our 90mm Super Scale Series rendition of this ultimate warfighter!  For more than 50 years, the F-4 Phantom delivered the versatile capabilities required of an all-weather frontline supersonic interceptor, fighter-bomber, SEAD, and reconnaissance platform. Less than a year after its retirement from US military service, you can still keep the F-4 Phantom flying in your RC fleet!

RC pilots have consistently requested a large F-4 EDF jet that performs excellently out of the box without endless modifications. We developed this F-4 to deliver reliability, durability, and performance from your very first flight.  Grass operation is a hallmark of the Freewing 90mm F-4. With its wide stance, tall main tires, Oleo suspension nose strut and concealed trailing link suspension main struts, this aircraft performs well on rougher grass fields.

Super scale details include accurate dual landing lights flush-mounted into the scale operating nose wheel doors, DayBright position lights, rivet detail, static arrestor hook, and period accurate ordnance comprising four AIM-9D Sidewinders and two 370 gallon fuel tanks on removable hardpoints. Plastic details include pitot tubes, ejection seat pull rings, and molded exhaust nozzles.  The large fiberglass nose cone is magnetic and removable, and the chin pod beneath it is foam, allowing easy removable and customization for other versions (-C or late -D). An optional, highly detailed 3DPUP set (“3D Printed Upgrade Part”) is available that represents the correct Mk H-7 ejection seats and cockpit instrument panels in high detail. Download the 3D Print-ready files for free!

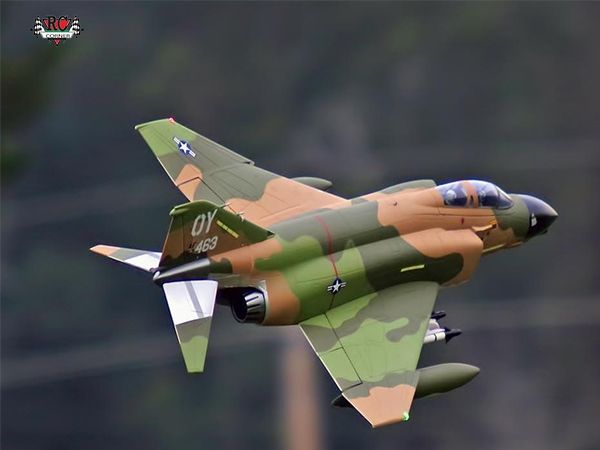

Representing the famed aircraft BuNos 66-463 operated by pilot Richard “Steve” Ritchie and weapons systems officer Charles “Chuck” DeBellevue when they scored their fifth kill together on May 10, 1972 over Vietnam, the Freewing 90mm F-4 arrives pre-painted in classic SEA (South East Asia) Camo and proudly wears the markings of the 555th TFS.  BuNos 66-463 became a bona fide “MiG Killer”, being credited for six aerial kills with five different flight crews.  For piloting wanting to customize their F-4 with their own scheme, we recommend Callie-Graphics.com.

Such a large RC model aircraft remains easy to transport with magnetic removable fiberglass nose cone and removable wings with a convenient flexible wire harness that attaches at each wing root.  Large flaps, brass ball links, reliable control hardware, and digital servos throughout the aircraft provide positive control, and a specially designed elevator mechanism incorporates two ball bearings for smooth rotation at all times.

The Freewing 90mm F-4 Phantom II is available in two power system versions.  The Standard version requires a 6S 5000-6000 mAh LiPo battery, and is our top recommendation to pilots seeking the best balance between speed, thrust, and cost. The High Performance version requires an 8S 5000 mAh LiPo battery, and delivers increased vertical climbing performance and acceleration. The High Performance version is recommended for Advanced pilots only due to the aircraft’s higher speed envelope and heavier flying characteristics.

Own the biggest and best performing foam EDF F-4 Phantom in the world – Rejoice RC pilots, Freewing has delivered another grand slam!

  Visit the Official Freewing 90mm F-4 Phantom II Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.

Note:  The F4 Phantom displayed in the photos above - while similar in livery - is a custom-painted pre-production version and not the actual final production version.

FEATURES:

  • New! 90mm 9-blade ducted fan and powerful 3672-1900kV brushless inrunner motor provides awesome power and incredible real life jet turbine sound
  • 130A ESC
  • Removable ordnance (4x AIM-9 Sidewinder missiles and 2x magnetic fuel tanks)
  • Scale operating nose door and landing lights
  • Durable suspension struts for grass operation
  • Removable wings and stabilizers for convenient transport
  • Removable magnetic fiberglass nose cone
  • Digital servos throughout

INCLUDES:

  • Freewing F-4C/D Phantom II High Performance 90mm EDF Jet - PNP

REQUIRES:

PRODUCT SPECIFICATIONS:

AGE LEVEL : 18 AND UP
SKILL LEVEL : ADVANCED
BUILD TIME : 3-4 HOURS
Wingspan 1030mm / 40.15in
Length 1550mm / 61.02in
Empty Weight 2850g / 100.53oz (w/o battery)
CG (Center of Gravity) 190mm (7.5") from the leading edge of the wing at the root
Power System 6S 3672-1900kV Brushless Inrunner Motor
Electronic Speed Control 130A, EC5 Connector
Propeller / EDF 90mm 9-Blade EDF
Servos 9g hybrid digital standard with 600mm lead : nose gear steering, nose gear door
17g metal gear digital standard with 300mm lead : left aileron, right aileron, left flap, right flap
17g metal gear digital standard with 950mm lead : rudder
30g metal gear digital standard with 750mm lead : elevator

Landing Gear Electronic retractable main gear and steerable nose gear with all metal shock absorbing struts
Required Battery 6S 22.2V 5000mAh LiPo with EC5 connector (required)
Required Radio 6 Channel (required)
Ailerons Yes
Elevator Yes
Rudder Yes
Flaps Yes
Lights Yes
Hinge Type Nylon Reinforced
Material EPO Foam
Skill Level Advanced/Expert
Build Time 3-4 Hours
Recommended Environment Outdoor, 300+ foot paved runway or short manicured grass
