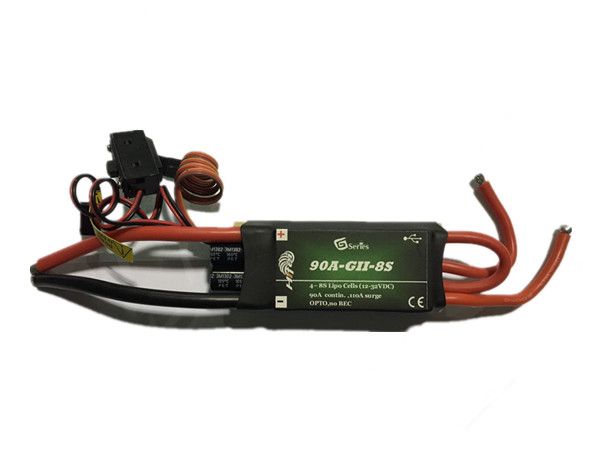

HIFEI 90A-GII-8S BEC ESC
SPECIFICATIONS:
Input Voltage |
4S-8S Lipo Cells |
Continuous Current(Surge) |
90A (110A) |
BEC |
no (OPTO) |
Programmability |
HiFei ProgramBox,HiFei USB Linker,HiFei ProgCard |
Data Logger |
no |
Dimension |
89x35x21mm |
Weight |
107g |
Features:
- Microprocessor Controlled
- Alumimium PCB Technology
- The Most Advanced Automotive Level MOSFETs
- Unique Ducted Cooling Structure
- High rate adjustable switching (PWM:8KHz/12KHz/16KHz)
- Programmable low voltage cutoff
- Programmable cutoff types(soft cutoff/hard cutoff)
- Programmable brake type(disable/soft brake/hard brake)
- Time advance programmable (low/standard/high)
- Programmable current limiting(very sensitive/standard/insensitive/disable)
- Governor mode(low rpm governor/high rpm governor)
- Programmable startup type(very soft start/soft start/fast start)
- Thermal Protection(100 centigrade)
- A LED (flashes) indicates full throttle.
- Runs motor in forward or reverse by swapping any two motor wire connections.
- Safe 'power on' arming program ensures motor will not accidentally turn on.
- Auto shut down when signal is lost or radio interference becomes severe for more than 3 seconds .After
- radio connection has been reestablished, moving the throttle to the lowest position can restart the motor.
- The ESC is disabled when the voltage is over 51v at power-on
Manufacturer | dji |
---|
