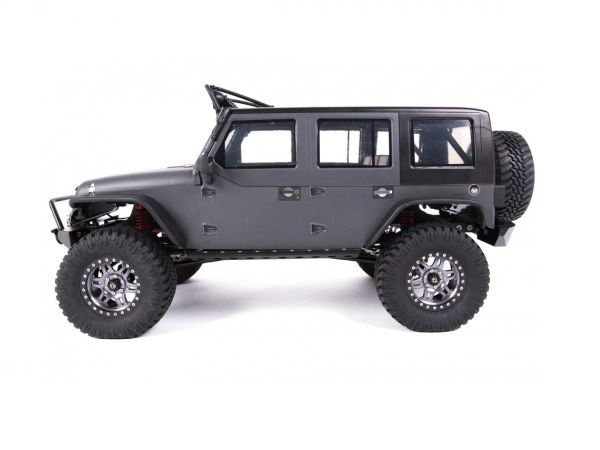

KING MOTOR TRACTION HOBBY FOUNDER (1/8 FULL METAL CRAWLER)
AED 4,196
VAT Excl.
In stock
SKU
SKU-1260
TRACTION HOBBY FOUNDER (1/8 FULL METAL CRAWLER)
NOW AVAILABLE ON STOCK!
| Vehicle Configuration | ||||||||
| Power | ||||||||
| Motor：550 50T Brush high-speed motor(Option) | ||||||||
| ESC：Hobbywing HW-WP-860-DUAL-RTR 60A brush ESC(Option) | ||||||||
| Battery: Support 7.4V 2S Lipo battery/7.4V Li-no battery/7.2V Ni-Mh battery(Not provided) | ||||||||
| Parameter | ||||||||
| Car size：L/W/H 645 mm/275mm/300mm Wheel base：374mm | ||||||||
| Net weight:4.94KGS(No battery,controller,winch ) | ||||||||
| Max speed：40km/h | ||||||||
| Frame | ||||||||
| Chassis frame：6mm carbon fiber material | ||||||||
| Suspension ：Full metal front rear axle/non independent. Angle:Approach 61.5°; Departure 42°; Passing 47.8° | ||||||||
| Shock Absorber：Metal adjustable hydraulic shock absorber，silicone oil filling. | ||||||||
| Adaptor：Alu. Alloy 6061-T6 material (12mm ) | ||||||||
| Body shell：Jeep Wrangler PC split type shell(Option color:grey and clear) | ||||||||
| Driving | ||||||||
| Gear set：Total gear ratio is 32.3 Pinion gear:14T Spur gear:58T Nylon tooth | ||||||||
| Driving：4WD /Shaft driving.Central flower sub-actuator and front rear axle differential lock | ||||||||
| Transfer case reduction gear ratio is 2.6 | ||||||||
| Wheel ：CNC KX wheel hub and DAKAR MT tire | ||||||||
| Electronic equipment | ||||||||
| Steering servo ： NO.712 Servo（20KG) | ||||||||
| Transmitter: MT-3D 2.4GHZ 3-channel controller | ||||||||
| Bonus | ||||||||
| Body sticker*1set | ||||||||
| Instruction book*1pc | ||||||||
| Wheel wrench*1pc |
| Manufacturer | dji |
|---|
