AR9030T 9CH AIR TELEMETRY RX
KEY FEATURES
- Compatible with all Spektrum DSMX transmitters
- Compact design fits most parkflyer size and larger aircraft
- Capable of 11ms frame rates
- Integrated telemetry with built-in ports for RPM, flight pack voltage, temperature sensors and X-bus for telemetry sensor expansion
- Receiver pack voltage and flight log data available without the need for additional sensors
- Dual antennas for optimal RF performance
PRODUCT SPECIFICATIONS
- Type: AR9030T 9 Channel Air Telemetry Receiver
- # of Channels: 9
- Modulation: DSM2/DSMX
- Band: 2.4GHz
- Length: 1.91 in (48.5 mm)
- Width: 1.11 in (28.3 mm)
- Height: 0.82 in (20.9 mm)
- Weight: 0.63 oz (17.83 g)
- Voltage Range: 3.5-9V
- Experience Level: Intermediate
OVERVIEW

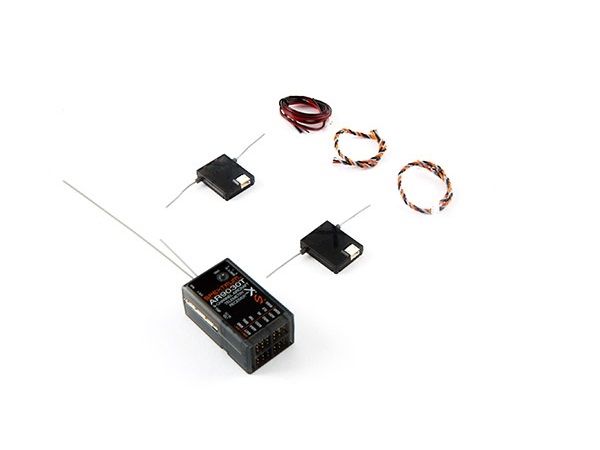

The AR9030T receiver is a feature-packed, 9-channel receiver with integrated full-range telemetry. The AR9030T features built-in connection ports for RPM, Flight Pack Voltage, and Temperature sensors as well as an X-Bus port for additional telemetry options. No sensor is required to receive flight log or receiver pack voltage telemetry data. If you have a DSMX/DSM2® transmitter capable of 11ms frame rates, the AR9030T receiver will deliver lightning-fast input-to-output response that is perfect for high-performance applications like 3D helis and airplanes. The AR9030T includes 2 DSMX remote receivers that allows you take advantage of Spektrum™ MultiLink™ technology. This patented technology eliminates the reflected signal fading and antenna blind spots that can affect all 2.4GHz systems.
