DJI AGRAS T30 WITH 3 BATTERY AND CHARGER

AED 36,700
VAT Excl.
Out of stock
SKU
SKU-2297

With a 30 liter spraying tank, the DJI Agras T30 takes aerial spraying efficiency to new heights. A revolutionary transforming body enables more effective spraying, especially for fruit trees. Using DJI digital agriculture solutions, the T30 helps reduce fertilizer use and increase yield with effective, data-driven best practices.

Key Features

  • 30L spray tank.
  • Spherical radar system.
  • IP67 water and dust resistance.
  • Dual FPV cameras for monitoring.
  • RTK for high precision autonomy.
  • Cloud solution using the agriculture cloud platform.



In the box,

  • Agras T30 x 1
  • Batteries   x 3
  • Charger    x 1



FEATURES

On delivery each individual craft has been set up, tested and certified in compliance with CAA guidelines by our specialist technicians. As well on handover one of our commercial solutions team will spend half a day with you going through craft setup, maintenance, operations and best practice so you are confident with your new machine.

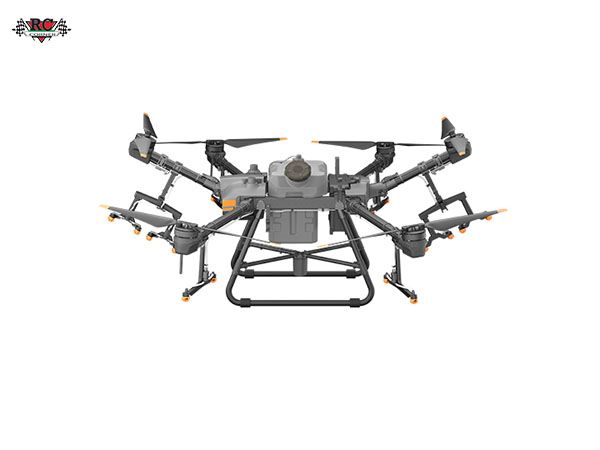

The Agras T30 is DJI’s next-generation aircraft, boasting a revolutionary transforming structure and a max payload of up to 40 kg. Using DJI’s digital agriculture solutions, the performance and efficiency of spray operations can be greatly enhanced and improved. The updated Route Operation mode includes Connection Routing, which enables the aircraft to automatically fly to a task route and avoid obstacles. The new Smart Supply Reminder calculates the remaining liquid amount to help users manage spraying operations.

The aircraft comes equipped with the Spherical Radar System, a pioneering new system for the agriculture industry. Consisting of the Omnidirectional Digital Radar and Upward Radar, the system provides functions such as terrain-following, obstacle sensing, and obstacle circumventing. With the forward and backward FPV cameras and bright spotlights, the system comprehensively ensures operational safety day and night in different weather.



SPRAY TANK VOLUME

MAX TAKEOFF WEIGHT

OPERATING PAYLOAD

PROTECTION RATING

MAX FLYING SPEED

MAX WIND RESISTANCE

30 L  66.5 kg 30 kg IP67 10 m/s 8 m/s







Thanks to the innovative new plunger pumps and the 16 sprinklers, the spraying system offers improved spray width, rate, distribution, and efficiency. The 2-channel electromagnetic flow meter and continuous liquid level gauge make measurements more accurate than ever. To spray orchards, users can purchase the optional orchard spray package to transform the aircraft into Orchard Configuration. When spraying orchards, branch-targeting technology can be used for precise spraying with the help of the all-new Spherical Radar System and DJI Agras Cloud.


The aircraft has a protection rating of IP67 (IEC 60529) and the core components boast three layers of protection, making the T30 corrosion-resistant, dustproof, and waterproof so that it can be washed directly with water.

The Smart Controller Enterprise uses DJI OcuSync Enterprise transmission technology, has a max transmission distance of up to 7 km, and supports Wi-Fi and Bluetooth. The remote controller has a 5.5-inch bright, dedicated screen and comes with the updated DJI Agras app built-in, delivering a smooth and easy-to-use experience. Operations can be planned to centimeter-level precision when the RTK dongle is connected to the remote controller. The Multi-Aircraft Control mode of the remote controller can be used to coordinate the operation of multiple aircraft at the same time, enabling pilots to work efficiently. Both the built-in battery and external battery can be used to supply power to the remote controller. The remote controller has a working time of up to 4 hours, making it ideal for long and high-intensity operations.


Feature Highlights

The T30 features a brand-new quadrilateral folding structure design for quick folding and easy storage. Folding detection sensors built into the frame arms enable the aircraft to perform a folding mechanism self-check ensuring the arms are properly unfolded. The aircraft supports centimeter-level positioning when used with the onboard D-RTKTM while the dual-antenna technology provides strong resistance against magnetic interference. Users have clear views of the front and rear of the aircraft thanks to the dual FPV cameras.
The updated Route operation mode includes Connection Routing. In Connection Routing, the aircraft will automatically return to a task route. Users can mark obstacles outside the task area during field planning for the aircraft to avoid and also add connection points for the aircraft to travel through along the connection route back to the task route. Operations are further automated by the Smart Supply Reminder, which calculates the remaining liquid amount in real-time and displays the refill point on the map.


Technical Specifications


Feature

Hourly work efficiency - 40 acres

High-precision radar   -√ Spherical Omnidirectional Radar System

Remote control planning accuracy - √ (RTK/GNSS)

Pipe air exhaust - √ One-button Air Discharge

3D operation planning by the AI smart engine - √

High-precision flowmeter - √ (Dual-channel electromagnetic flowmeter with an error of ±2%)

Level gauge - Continuous level gauge (with real-time pesticide load detection and intelligent supply-point prediction)

Maximum spray flow - 7.2L/min (with the XR11001 nozzle) 8L/min (with the XR110015 optional nozzle)

Pesticide tank installation method - Fixed pesticide tank

Battery installation method - Removable batteries

Single remote control for multiple drones - √ (Single remote control for up to three drones)

D-RTK technology         - √

Top-view radar module  - √

Flight laser function       - √

Intelligent endurance/return function - √

Intelligent supply-point prediction - √

Front-view FPV - √

Rear-view FPV - √

Coordinated turning function - √

Branch targeting technology  - √



Drone parameters

Total weight (without batteries) - 26.4 kg

Maximum take-off weight - 78 kg (near sea level)

Maximum thrust-to-weight ratio - 1.70 @ takeoff weight of 66.5 kg

Hovering precision (with good GNSS signal)

With D-RTK enabled:
±10 cm (horizontal) and ±10 cm (vertical)
With D-RTK disabled:
±0.6m (horizontal) and ±0.3m (vertical) (with the radar function enabled: ±0.1m)

RTK and GNSS frequency bands

RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1/B2, and Galileo E1/E5
GNSS: GPS L1, GLONASS F1, and Galileo E1

Maximum power consumption - 11,000 W

Hovering power consumption - 10,000 W (@ takeoff weight of 66.5 kg)

Hovering endurance

20.5min (@29,000 mAh & takeoff weight of 36.5 kg)
7.8min (@29,000 mAh & takeoff weight of 66.5 kg)

Maximum pitch angle - 15°

Maximum operating flight speed - 7 m/s

Maximum level speed - 10 m/s (with good GNSS signal)

Maximum tolerable wind speed - 8 m/s

Maximum flight altitude - 4,500m
*Reduce the pesticide load by 12% for each increase of 1,000 meters in altitude.

Recommended operating ambient humidity - < 93%

Recommended operating ambient temperature - 0℃ to 45℃



Power system - Motor

Stator size - 100×18 mm

KV value - 77 rpm/V

Maximum pull - 18.7 kg/rotor

Maximum power - 3,600 W/rotor

Weight - 756 g



Power system - ESC

Maximum operating current (continuous) - 60 A

Maximum operating voltage - 60.9 V (14S LiPo)



FPV cameras

View angle (FOV)  - Horizontal: 129°, vertical:82°

Resolution            - 1,280×720 15-30 fps

FPV searchlights

Maximum light intensity - 13.2 lux @ 5-meter direct light



Spraying system - Operation tank

Operation tank volume - 30L at full load

Operating load - 30 kg at full load



Spraying system - Water pump

Water pump model - Plunger pump

Operating voltage - 60 V

Maximum flow - 4 L/min ×1

Spraying system - Flowmeter

Flow measurement range - 0.25 - 20 L/min

Flow measurement error  - < ±2%

Measurable liquid  - Conductivity > 50 μS/cm, typical liquids: Tap water or aqueous organic or inorganic pesticides



Battery

Model     - BAX501-29,000mAh-51.8V

Weight   - Approximately 10.1 kg

Discharge rate - 11.5C

Water-resistance rating - IP54 with board-level potting protection

Capacity - 29,000 mAh

Voltage - 51.8 V



T30 Spreading System 3.0

Spreading system weight - 3.9kg

Maximum opening area - 44.6 cm²

Applicable materials - Solid dry particles with a diameter of 0.5 to 5 mm

Spreading tank volume - 40L

Maximum load of the spreading tank - 35kg

Water-resistance rating - IP67

Input voltage  - Power: 60V
                       Control:15V

Maximum power  - 60V@250W
                            15V@50W

Recommended operating ambient temperature - 0℃ to 40℃

Dimensions - 560×435×320mm

Maximum rotation speed - 1,300 RPM



T30 smart charging manager

Dimensions - 300×280×230 mm

Total weight - 11.5 kg

Input voltage - 100-264 Vac

Output voltage - 40-60 V

Rated power - 7,200

Charging current - 120 A

Charging time - Fully charges a battery in 9 to 12 minutes

Charging voltage accuracy - +/-0.1 V

Charging current accuracy - +/-1 A

Output channel quantity  - 2

Protection functions - Over-temperature, over-voltage, under-voltage, short-circuit, and fan stall protection

Charging ambient temperature -  -20℃ to 45℃

Charging safety - AC wire protection, power wire protection, and charge connector protection

More Information
Manufacturer dji
