Overview

Supports four global satellite navigation systems — BeiDou, GPS, Galileo, GLONASS, and 11-frequency satellite reception, providing real-time differential corrections to facilitate the aircraft in centimeter-level precision positioning.

It also supports coordinated operations involving multiple drones and an IP65 protection rating.

Highlights

Supports: GPS: L1 C/A, L2, L5; BEIDOU: B1, B2, B3; GLONASS: F1, F2; Galileo: E1, E5A, E5B

Connect multiple drones to conduct coordinated operations

IP65 Ingress Protection

In The Box

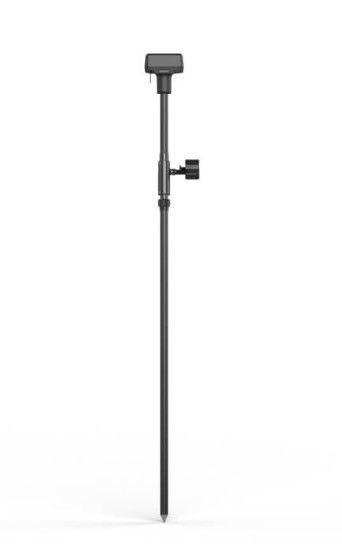

• D-RTK 2 Body × 1
• Extension Rod × 1
• Charging Hub × 1
• AC Power Adapter × 1
• Intelligent Battery (WB37) × 2
• Battery Cover × 1
• AC Power Cable × 1
• USB-C Cable × 1
• USB-C OTG Cable × 1
• Hex Key × 1

Specifications

Simultaneously receives:

GPS: L1 C/A, L2, L5

BeiDou: B1, B2, B3

GLONASS: F1, F2

Galileo: E1, E5A, E5B

Positioning Accuracy:

Single Point Horizontal: 1.5 m (RMS)

Vertical: 3.0 m (RMS)

Horizontal (RTK FIX): 1 cm+1 ppm (RMS)

Vertical (RTK FIX): 2 cm + 1 ppm (RMS)

1 ppm: For every 1 km increase in distance, the accuracy will be 1 mm less. For example, the horizontal accuracy is 1.1 cm when the receiving end is 1 km away from the base station.

IP65 Rating

Operating Temperature: -20° to 55° C (4° to 131° F )

Compatibility: Matrice 350 RTK, DJI Inspire 3, DJI Mavic 3E, DJI Mavic 3T, Matrice 30 Series, Phantom 4 RTK, Matrice 300 RTK
