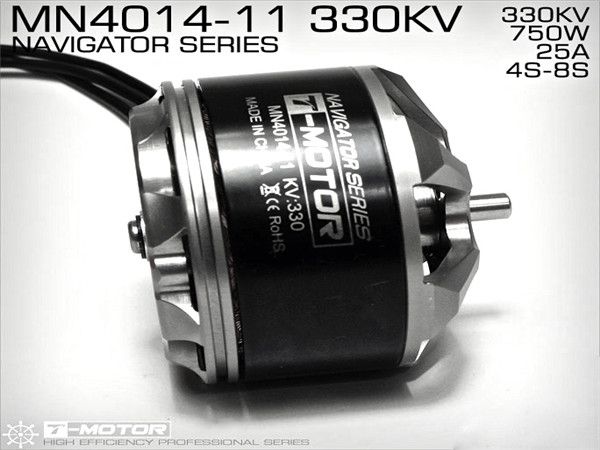

T-Motor MN4014-11 330KV Multi-rotor Disc Motor TM Pilot Version Description

Model:MT4014-11KV:330

Configuration:18N24P

Stator diameter:40mm

Stator length:14mm

Shaft diameter:4mm

Motor dimensions:41.8mm(Dia)*34.5mm(Len)

Motor weight:149g

Wires length:550mm

Number of LiPo Cells:4-8S Idle current@10v :1.1A

Max.Continuous Current 180S:25A

Max.Continuous Power 180S:750W

Max.Efficiency Current:(3-9A)>84%

Internal Resistance:85m

Boxed product weight:320g

Feature Multi-holes design fit with any type of prop in present market M6 and M8 propeller adapter very convenient to equip any kind of propeller Rolling pattern mechanical process Smooth operation and less noise Test Data Package included 1x Multi-rotor Disc Motor 1x Propeller Hat 1x 6mm Paddle Clip(with bullet) 1x 8mm Paddle Clip(with bullet)
