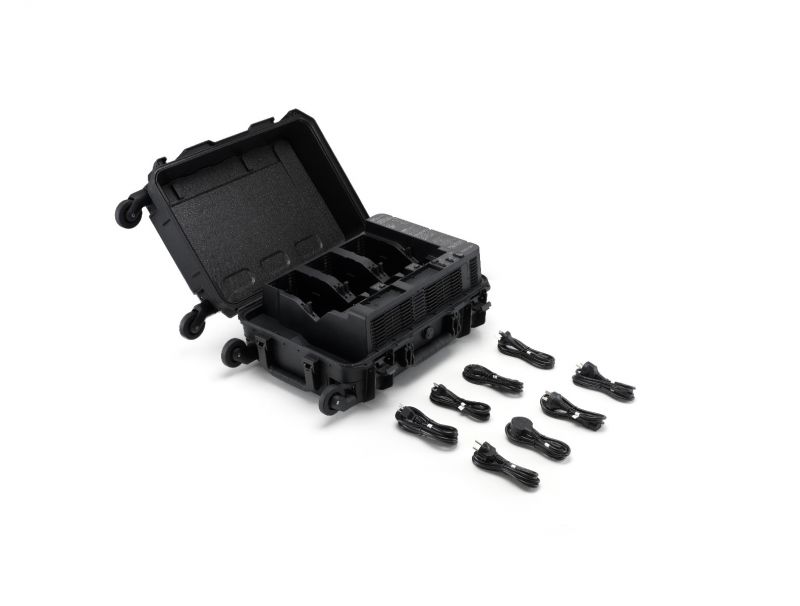

DJI Matrice 400 BS100 Intelligent Battery Station
BS100 Intelligent Battery Station
The intelligent battery station is a one-stop solution for battery charging, storage, and transport. It can charge up to three TB100 batteries and two WB37 batteries sequentially. With a fast charging time of just 45 minutes per TB100 battery, it ensures seamless, uninterrupted flight operations. In Silent Mode, noise levels are as low as 36 dB.
Intelligent Battery Station
-
Model - BS100
-
Net Weight - 11.8 kg
-
Dimensions - 605×410×250 mm (L×W×H)
-
Supported Batteries - TB100 Intelligent Flight Battery, TB100C Tethered Battery
WB37 Battery
-
Operating Temperature - -20° to 40° C (-4° to 104° F)
-
Input - 100-240 V (AC), 50-60 Hz, 10 A
-
Output - USB-C：
TB100 Battery Interface:
100-110 V: Approx. 1185 W
110-180 V: Approx.1474 W
180-240 V: Approx. 2184 W
WB37 Battery Interface:
100-240 V: Approx. 52 W
USB-C:
5.0 V 3.0 A, 9.0 V 3.0 A, 12.0 V 3.0 A, 15.0 V 3.0 A, 20.0 V 3.25 A
-
Number of Charging Channels - Three TB100 and two WB37 batteries
-
Charging Mode - Ready-to-Fly Mode 90%; Standard Mode 100%
Supports Fast Charging Mode and Silent Mode
-
Charging Time - TB100/TB100C Battery From 0% to 100%:
220 V: 45 minutes (Fast Charging Mode); 110 minutes (Silent Mode)
110 V: 70 minutes (Fast Charging Mode); 110 minutes (Silent Mode)
Charging time is measured in a test environment with a temperature of 25° C.
